Curve From Function#
GraphingLib components used: Figure
import numpy as np
import graphinglib as gl
# Define a function
def func(x):
return 100 * np.sin(x) / x
# Create a curve from the function
curve_a = gl.Curve.from_function(
func,
x_min=-10,
x_max=10,
color="C2",
label="Curve A",
)
# Create another curve from a different function using lambda
curve_b = gl.Curve.from_function(
lambda x: (x**3 - 2 * x**2 + 5) / 10,
x_min=-10,
x_max=10,
line_width=3,
line_style="--",
label="Curve B",
)
# Create a figure and add the curves

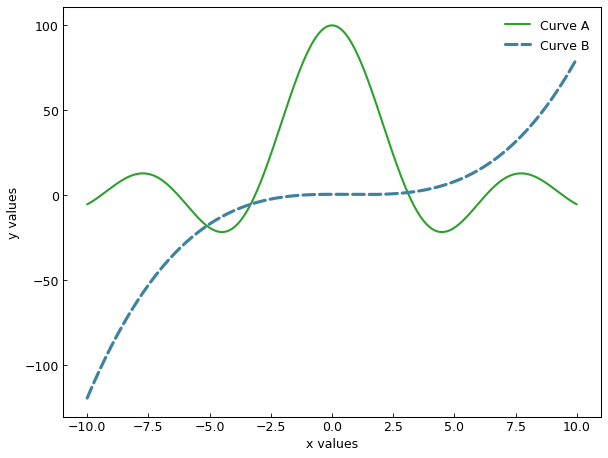

fig = gl.Figure(size=(8, 6), x_label="x values", y_label="y values")
fig.add_elements(curve_a, curve_b)
fig.show()
