Creating a MultiFigure#

To create a MultiFigure, you first have to decide what size you want the canvas’ grid to be. You control this by setting the values of num_rows and num_cols as shown in the figure below. This grid is then used to place each set of axes in the MultiFigure. These values are independent of the size of the canvas.

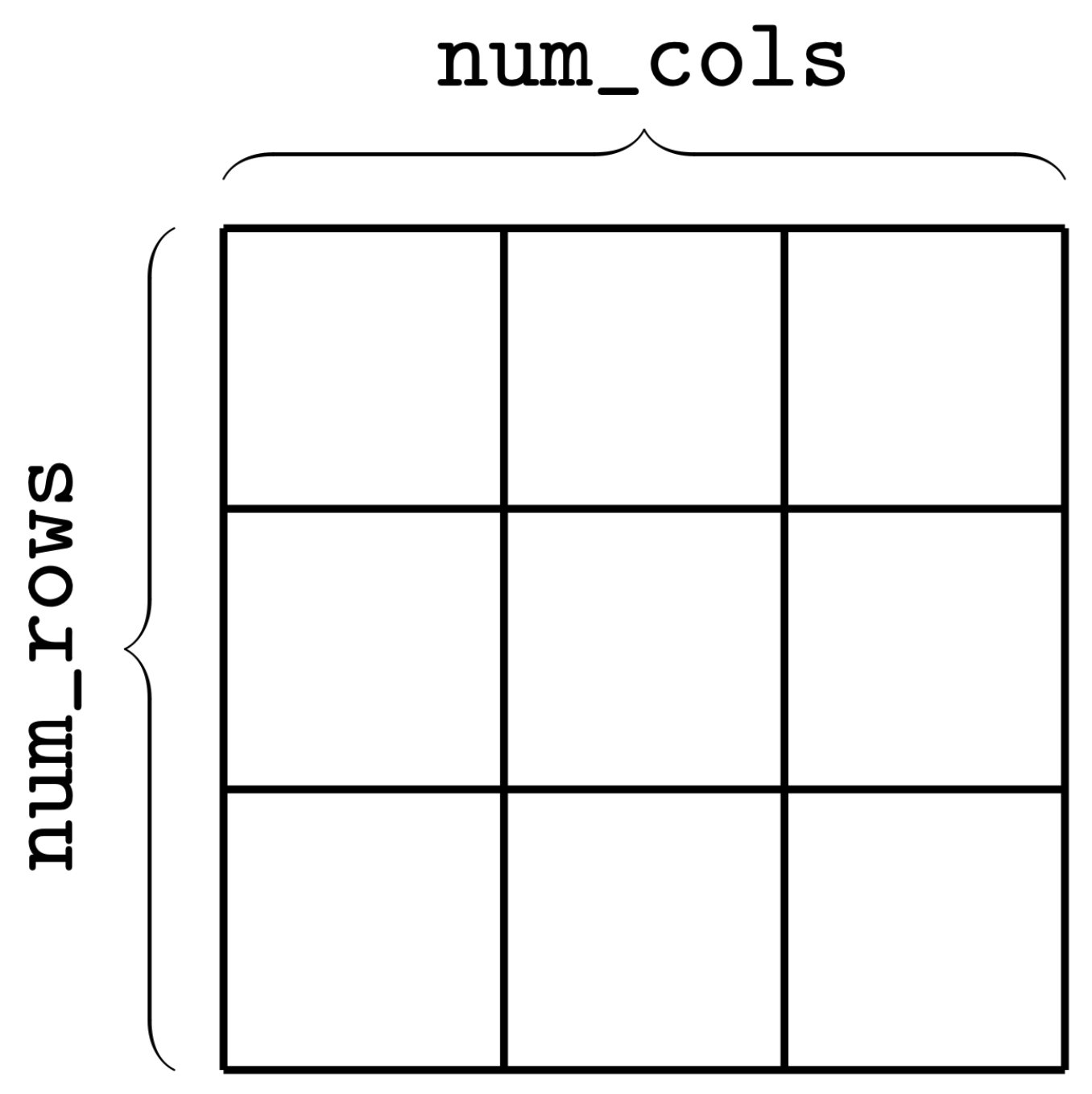

../_images/Canvas.png

To create a MultiFigure, simply use the following line of code:

multifigure = gl.MultiFigure(2, 2) # 2 rows, 2 columns

You can add create Figure objects and add them to the MultiFigure while specifying its position and size within the grid:

# Create the figures
figure1 = gl.Figure()
figure2 = gl.Figure()

# (row start, column start, rows spanned, columns spanned)
# This will create a 1x1 SubFigure in the top left corner of the grid
multifigure.add_figure(figure1, 0, 0, 1, 1)
# Now we create a SubFigure covering the right column of the grid
multifigure.add_figure(figure2, 0, 1, 2, 1) # Spans 2 rows, 1 column
# Bottom left stays empty

Elements can be added to Figure objects as usual using the add_elements() method. It is important to note that a single set of axes is not confined to a single square on the grid; it can span multiple squares. This means it is possible to align the individual sets of axes however you want. For example, here is how you could insert 3 subfigures in 2 rows with the one on the second row being centered:

# Create the curves
sine = gl.Curve.from_function(lambda x: np.sin(x), 0, 2 * np.pi, label="sine")
cosine = gl.Curve.from_function(lambda x: np.cos(x), 0, 2 * np.pi, label="cosine")
tangent = gl.Curve.from_function(
    lambda x: np.tan(x), 0, 2 * np.pi, label="tangent", number_of_points=1000
)

# Create the figures and add the elements
figure1 = gl.Figure()
figure1.add_elements(sine)
figure2 = gl.Figure()
figure2.add_elements(cosine)
figure3 = gl.Figure()
figure3.add_elements(tangent)

# Create the MultiFigure and add the figures to it
multifigure = gl.MultiFigure(2, 4, size=(11, 8)) # 2 rows, 4 columns

multifigure.add_figure(figure1, 0, 0, 1, 2) # Spans the first 2 columns of the top row
multifigure.add_figure(figure2, 0, 2, 1, 2) # Spans the last 2 columns of the top row
multifigure.add_figure(figure3, 1, 1, 1, 2) # Spans the middle 2 columns of the bottom row

multifigure.show()

(png, hires.png, pdf)

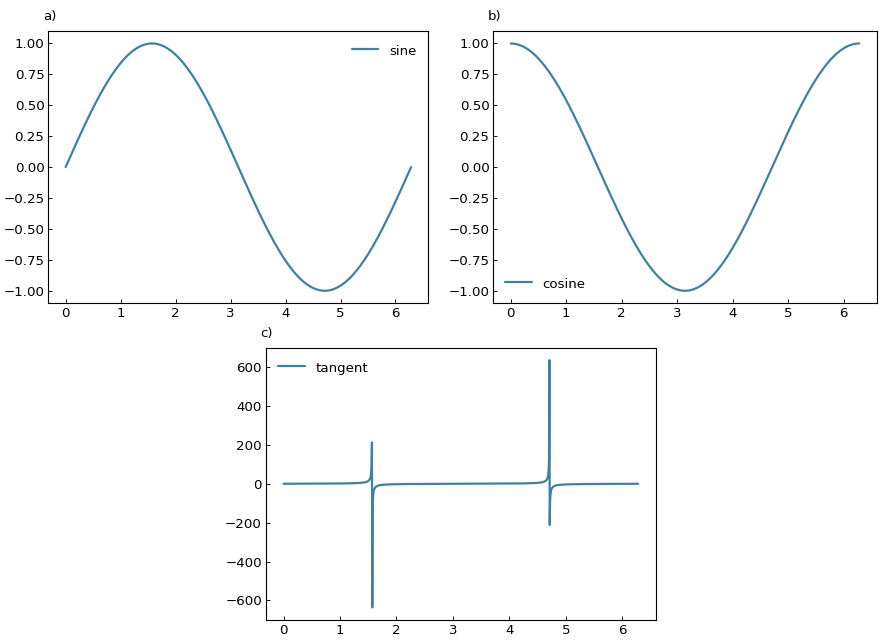

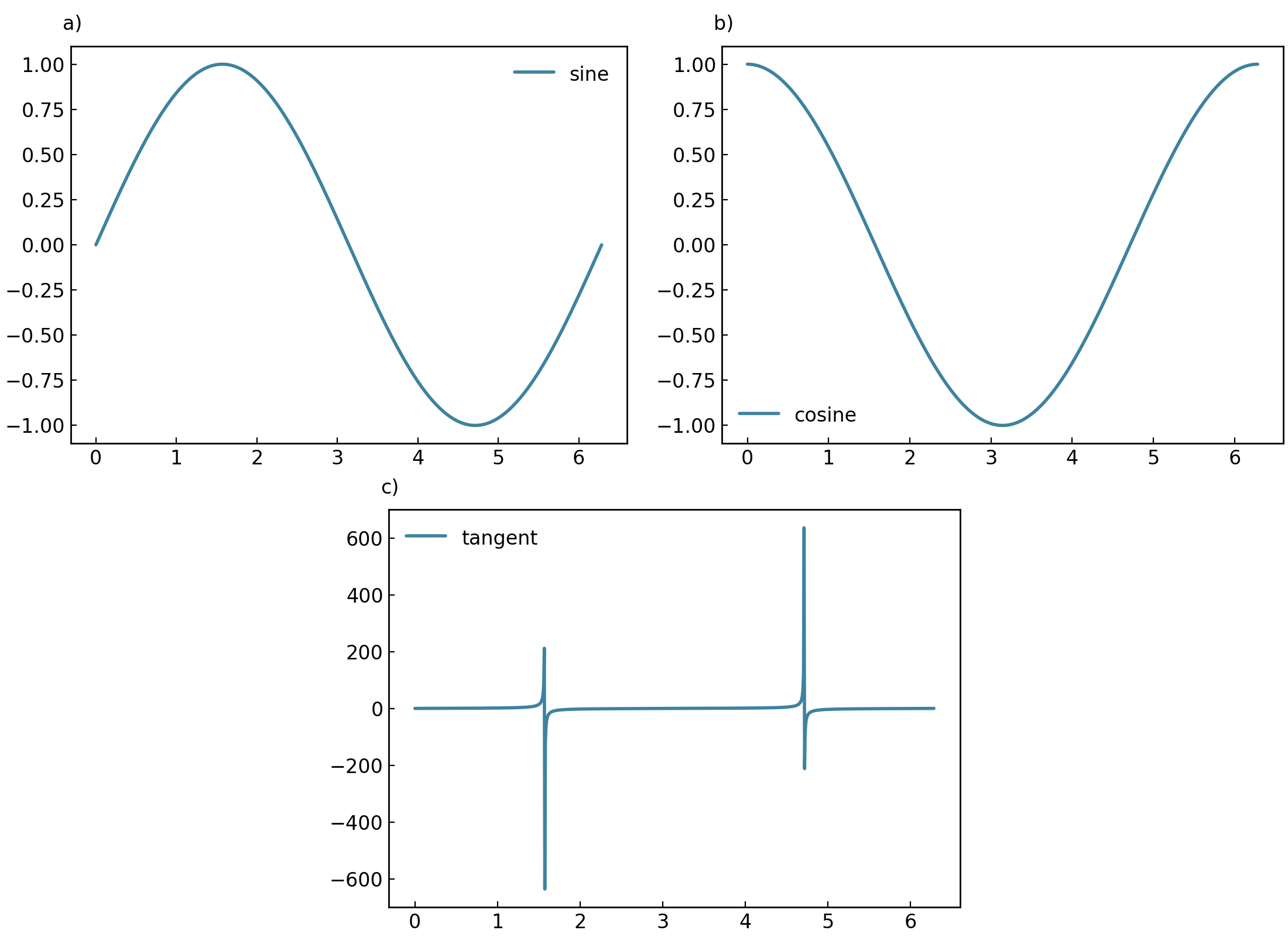

../_images/multifigure-3.png

As you can see in the above figure, there are labels (a), b), c)) next to each subfigure. These reference labels can be helpful to refer to a specific subfigure when inserting in a document. The boolean parameter reference_labels (in the MultiFigure constructor) can turn these on or off.

Some simple MultiFigure layouts have helper methods to make it easier to create them. For example, you can create a horizontal row or vertical stack of figures using the from_row() or from_stack() classmethods respectively:

multifigure_row = gl.MultiFigure.from_row([figure1, figure2, figure3], size=(10, 5))
multifigure_stack = gl.MultiFigure.from_stack([figure1, figure2, figure3], size=(5, 10))

The from_grid() classmethod can be used to create a MultiFigure from a list of figures and given dimensions. For example, the following code creates a 2x2 MultiFigure from a list of 4 figures:

figure4 = gl.Figure()
figure4.add_elements(sine, cosine, tangent)

multifigure_grid = gl.MultiFigure.from_grid([figure1, figure2, figure3, figure4], (2, 2), size=(10, 10), title="My MultiFigure")

Legends in MultiFigures#

The legends in a MultiFigure can be added separately for every subfigure or as a single legend combining the labels of every plot. This option is controlled by the general_legend parameter in the show() and save() methods. By default, it is set to False so that each subfigure controls its own legend. The two images below illustrate the different legend options.

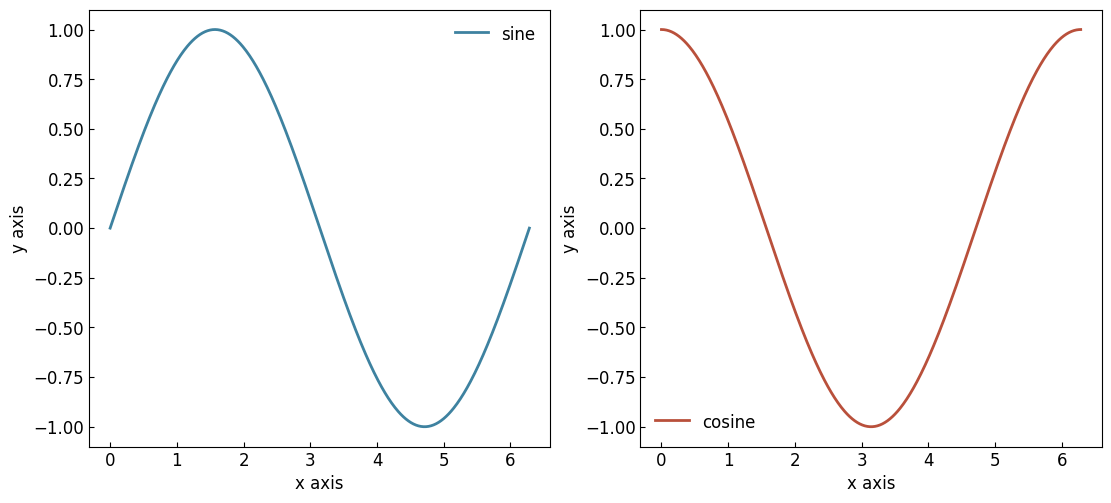

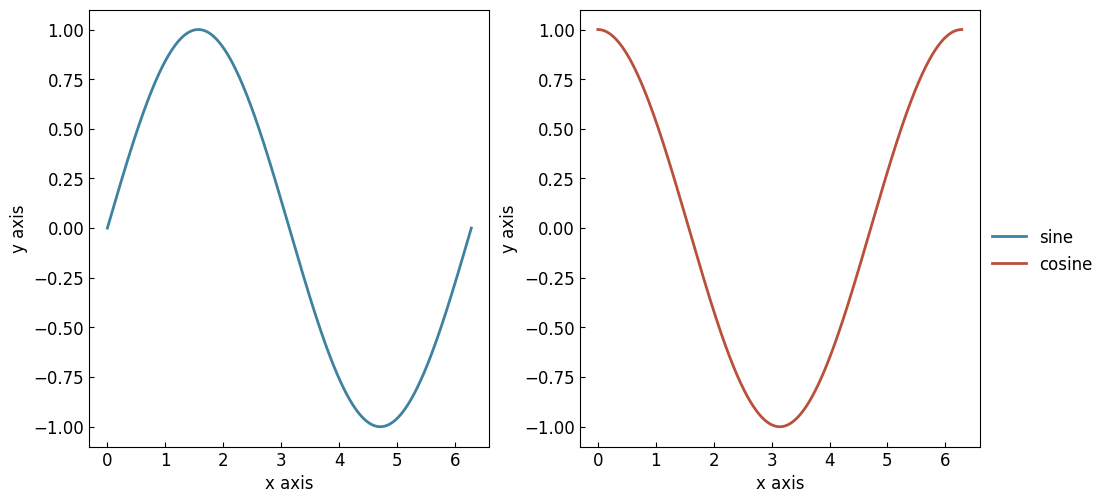

../_images/individuallegend.png ../_images/generallegend.png

Styles and Customization in MultiFigures#

Figure style and customizations can get a bit confusing when working with MultiFigure objects. Here is a brief overview:

  • The figure_style chosen in the MultiFigure constructor is applied to every Figure in the MultiFigure. Any figure_style specified in the individual Figure objects is ignored when displaying or saving the MultiFigure.

  • On the other hand, though applying style customizations to the MultiFigure object will apply them to every Figure in the MultiFigure, customizations specified in the individual Figure objects is prioritized over the MultiFigure’s customizations. This means that turning the grid on in the MultiFigure will turn it on for every Figure in the MultiFigure, but turning it off in an individual Figure will override the MultiFigure’s setting and turn it off for that Figure only.

In short, the figure_style chosen in the MultiFigure constructor sets a base style for the MultiFigure as a whole. Calling the set_visual_params() or the set_rc_params() methods on the MultiFigure will personalize the chosen figure_style for the MultiFigure. And calling these methods on the individual Figure objects will alter the MultiFigure’s style for that Figure only. Here is an example with customization of the axes edge colors:

# Create the curves
sine = gl.Curve.from_function(lambda x: np.sin(x), 0, 2 * np.pi, label="sine")
cosine = gl.Curve.from_function(lambda x: np.cos(x), 0, 2 * np.pi, label="cosine")

# Create the figures and add the elements
figure1 = gl.Figure(figure_style="dark") # this style is ignored when displaying the MultiFigure
figure1.add_elements(sine)
figure2 = gl.Figure()
figure2.add_elements(cosine)

# Create the MultiFigure and add the figures to it
# Use the "plain" style which has a black axes edge color
multifigure = gl.MultiFigure.from_row([figure1, figure2], size=(10, 4), figure_style="plain")

# Customize the axes edge color for all figures (but will be overridden for figure2)
# Note: order of these calls does not matter, figure2 will always override the MultiFigure
multifigure.set_visual_params(axes_edge_color="red")
figure2.set_visual_params(axes_edge_color="blue")

# Display the MultiFigure
# This will show the two figures side-by-side with the "plain" style, but
# the axes edge color will be red for figure1 and blue for figure2
multifigure.show()

# Display figure1 separately
# This will show figure1 with the "dark" style
# No axes edge color customization is applied
figure1.show()

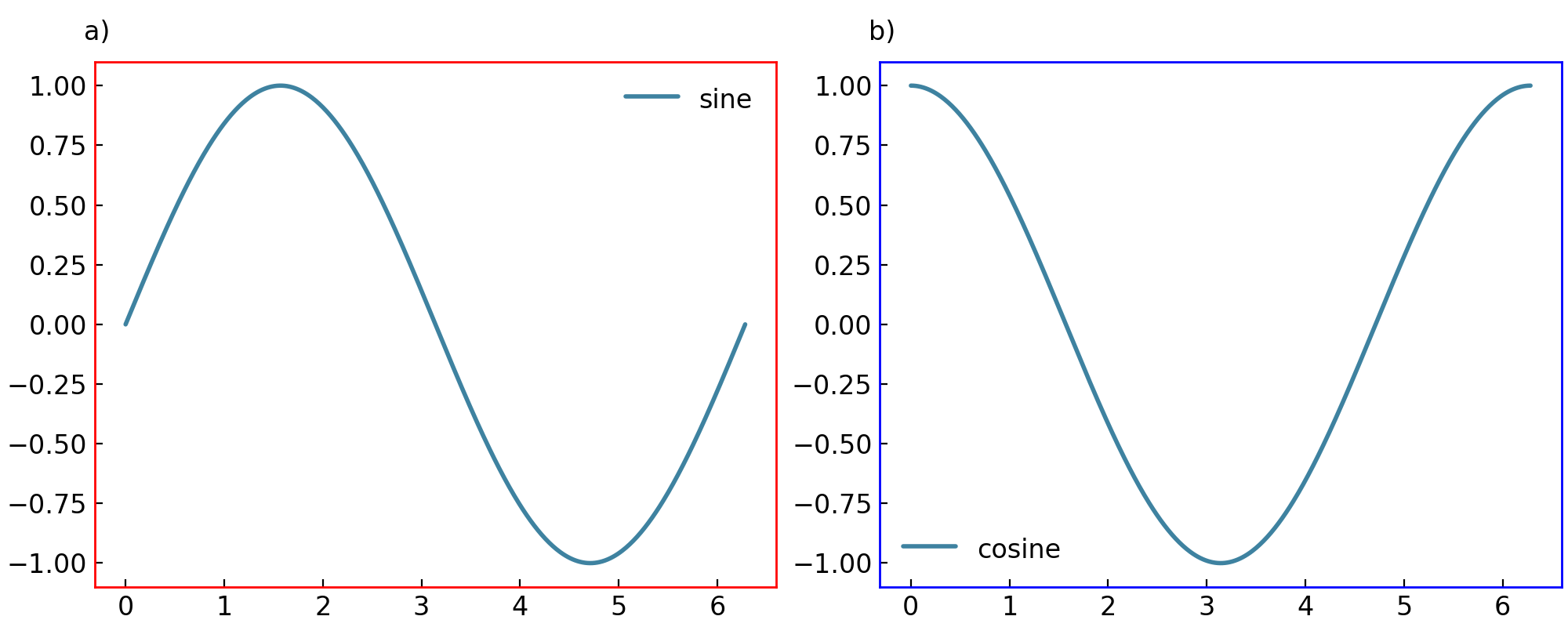

../_images/multifigure-6_00.png

(png, hires.png, pdf)#

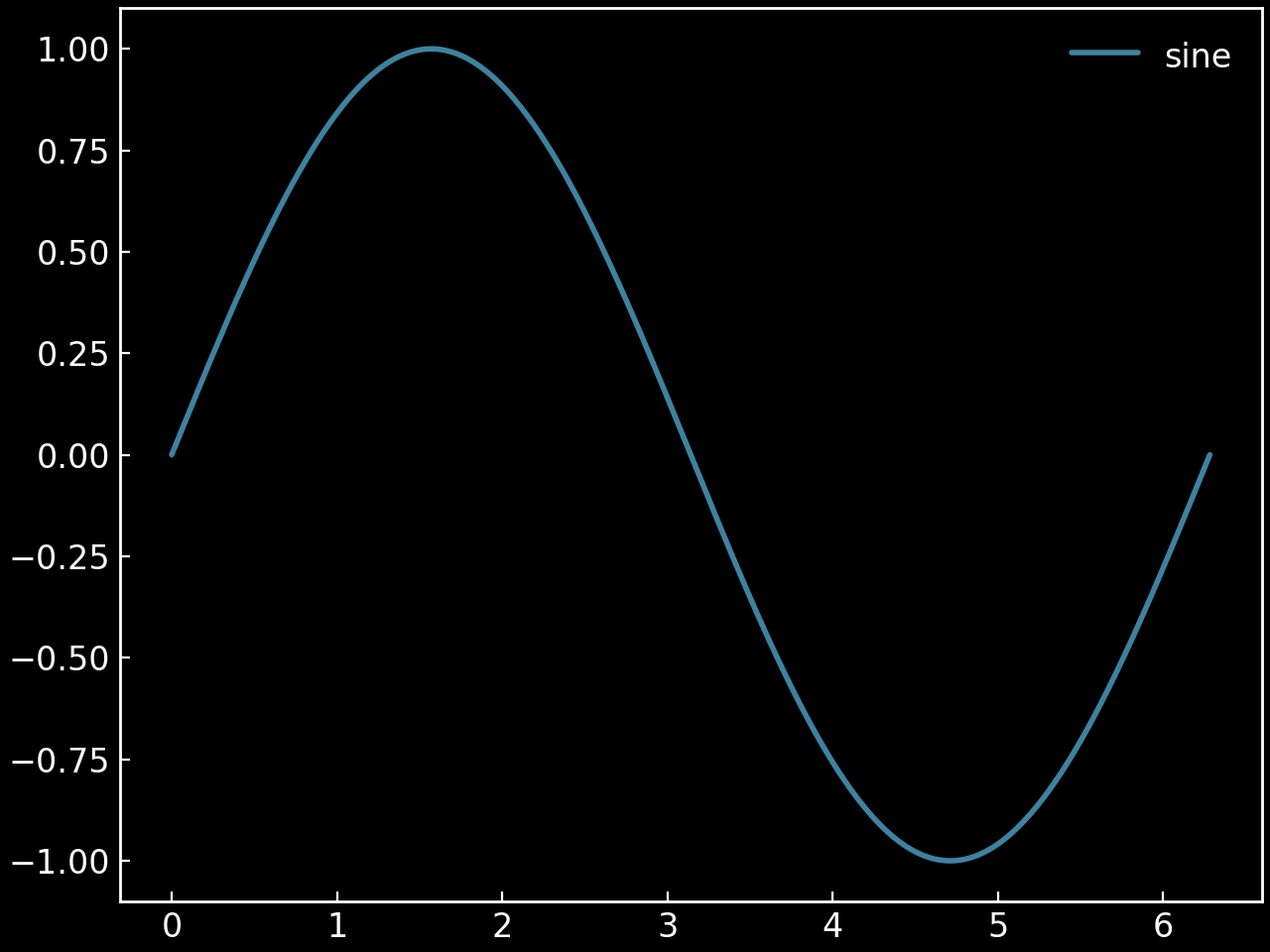

../_images/multifigure-6_01.png

(png, hires.png, pdf)#
