Plotting in 2D#

The Heatmap Object#

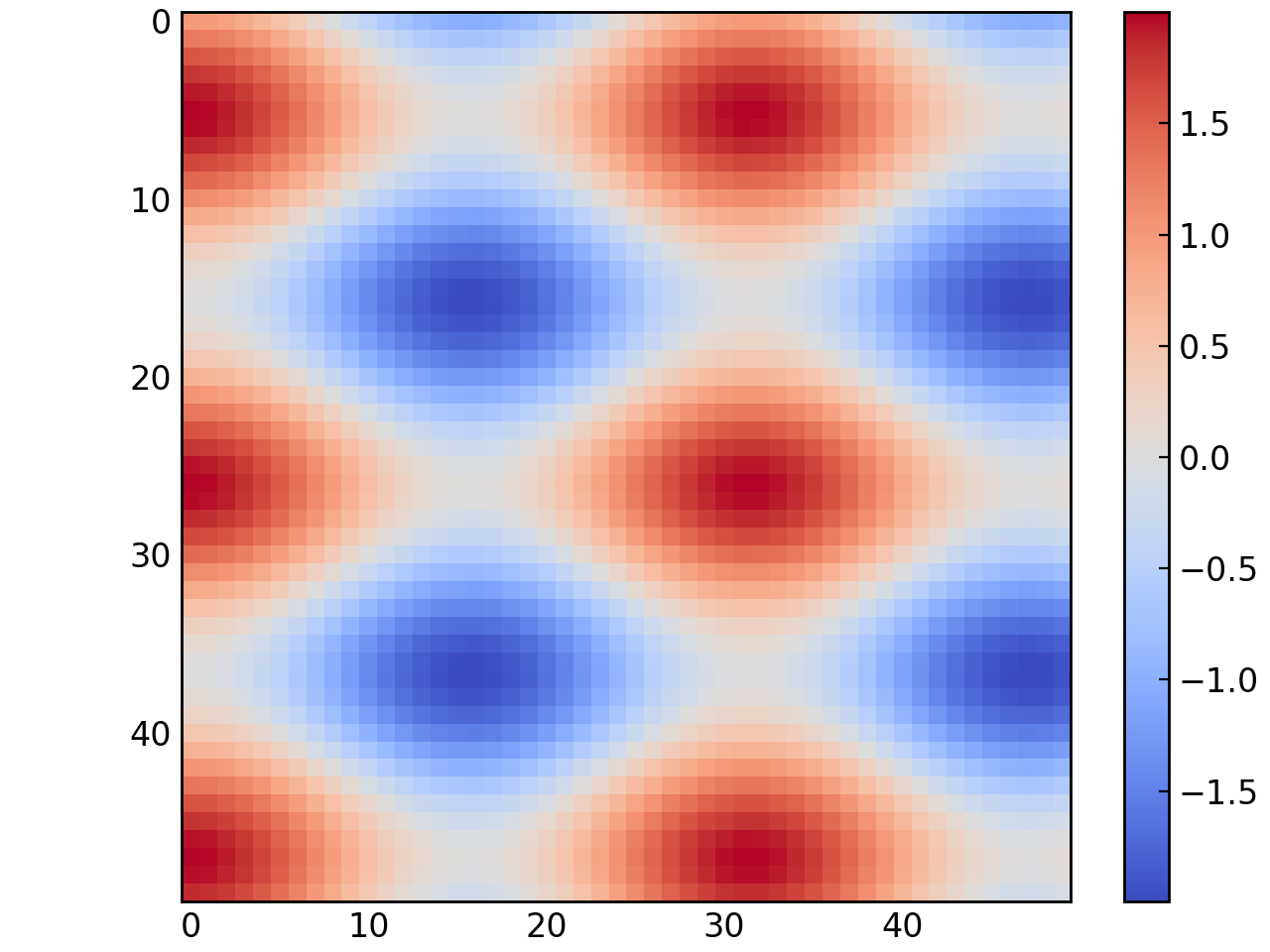

The Heatmap class allows you to plot a 2-dimensional map of values or display images inside a set of axes. Here is how you can create a Heatmap:

x_grid, y_grid = np.meshgrid(np.arange(0, 50, 1), np.arange(0, 50, 1))
data = np.cos(x_grid * 0.2) + np.sin(y_grid * 0.3)

map = gl.Heatmap(data)
figure = gl.Figure()
figure.add_elements(map)
figure.show()

(png, hires.png, pdf)

../_images/2D_plotting-1.png

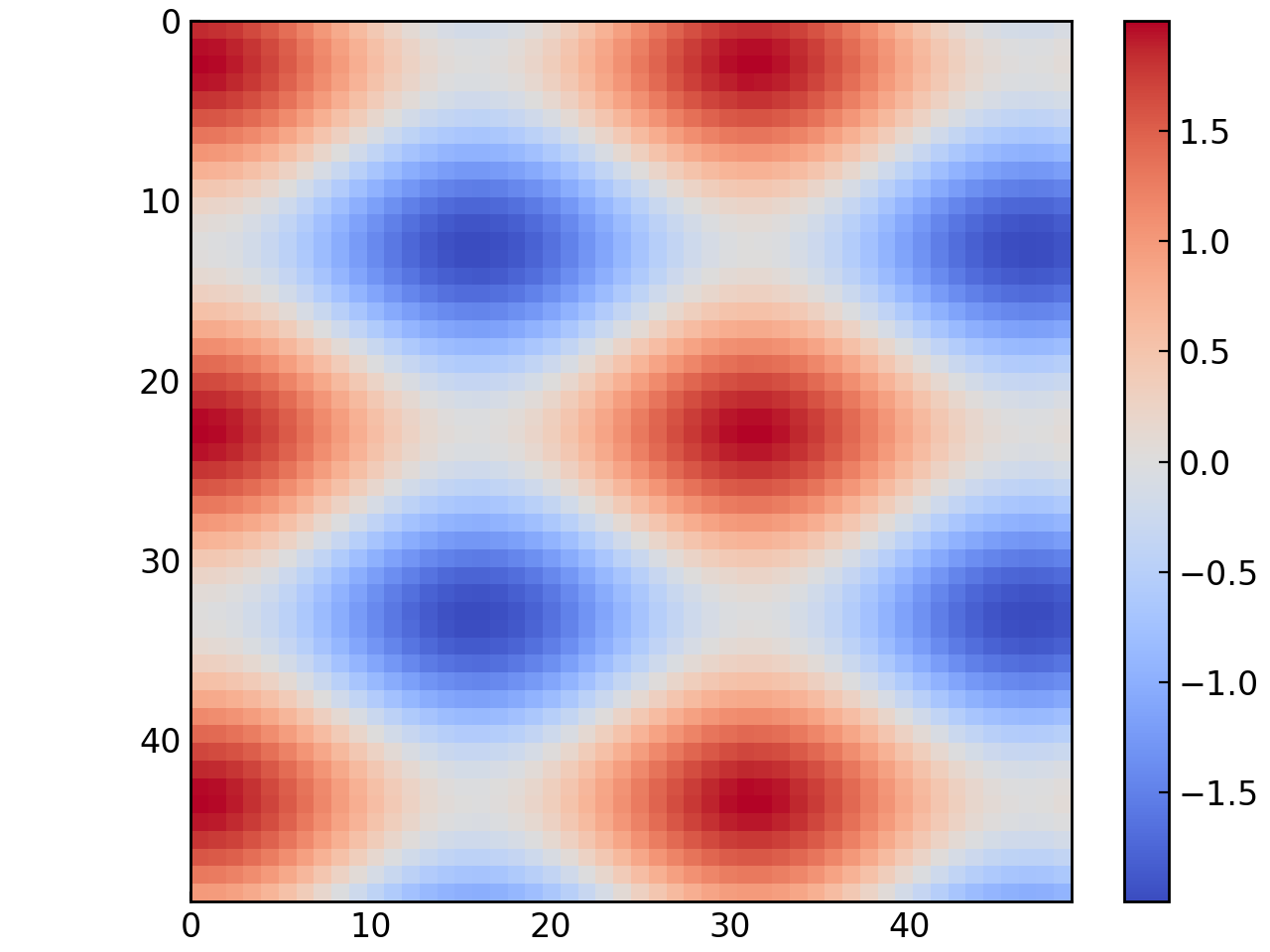

As for the Curve and Scatter objects, it is possible to create a Heatmap from a function with the from_function() method:

map = gl.Heatmap.from_function(
    lambda x, y: np.cos(x * 0.2) + np.sin(y * 0.3), (0, 49), (49, 0)
)

figure = gl.Figure()
figure.add_elements(map)
figure.show()

(png, hires.png, pdf)

../_images/2D_plotting-2.png

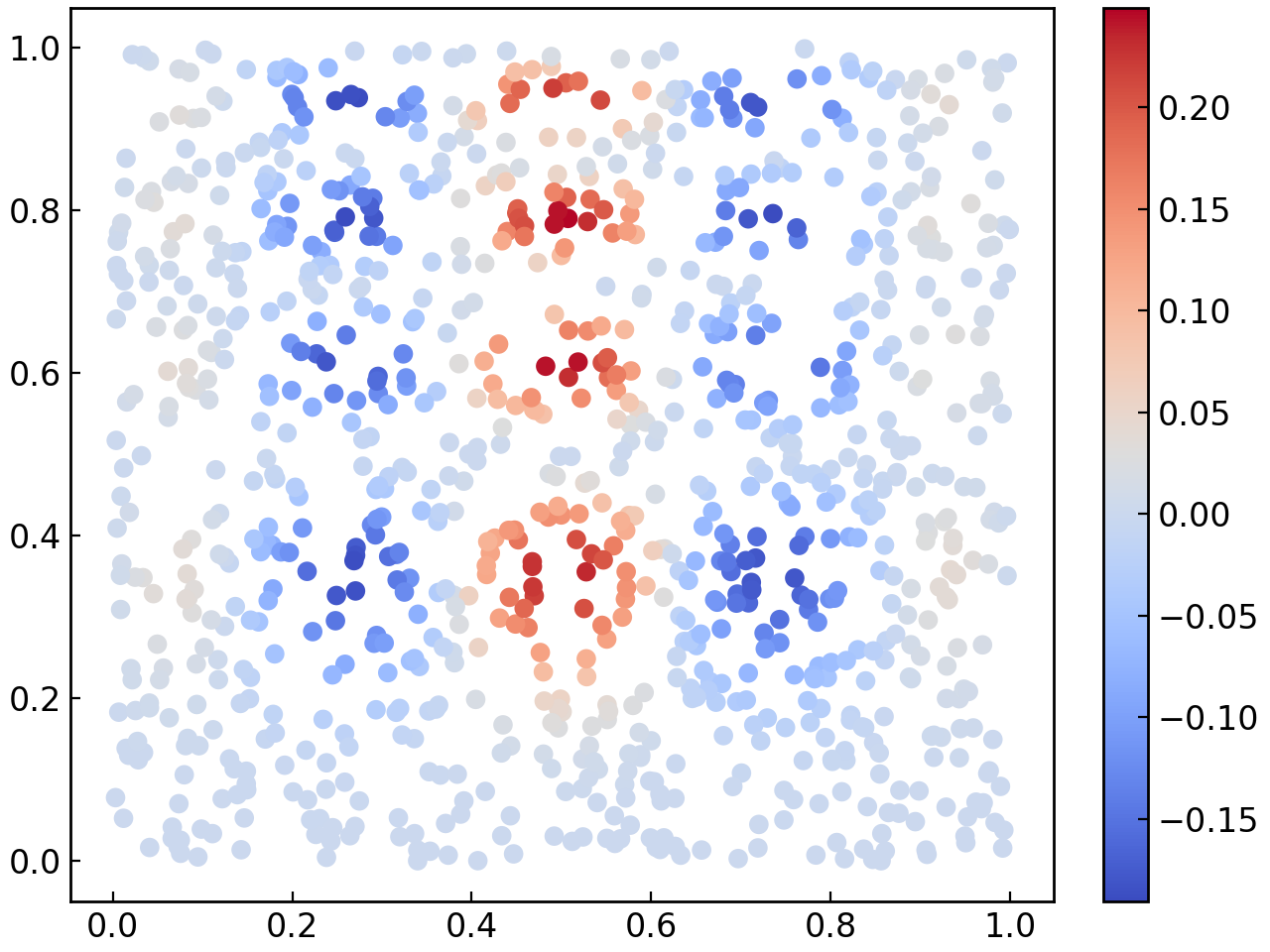

It is also possible to create a Heatmap from a list or array of values at unevenly distributed points. Take for example the data displayed below:

def func(x, y):
    return x * (1 - x) * np.cos(4 * np.pi * x) * np.sin(4 * np.pi * y**2) ** 2

generator = np.random.default_rng(seed=0)
points = generator.random((1000, 2))
values = func(points[:, 0], points[:, 1])

scatter = gl.Scatter(
    x_data=points[:, 0],
    y_data=points[:, 1],
    face_color=values,
    color_map="coolwarm",
    show_color_bar=True,
)

fig = gl.Figure()
fig.add_elements(scatter)
fig.show()

(png, hires.png, pdf)

../_images/2D_plotting-3.png

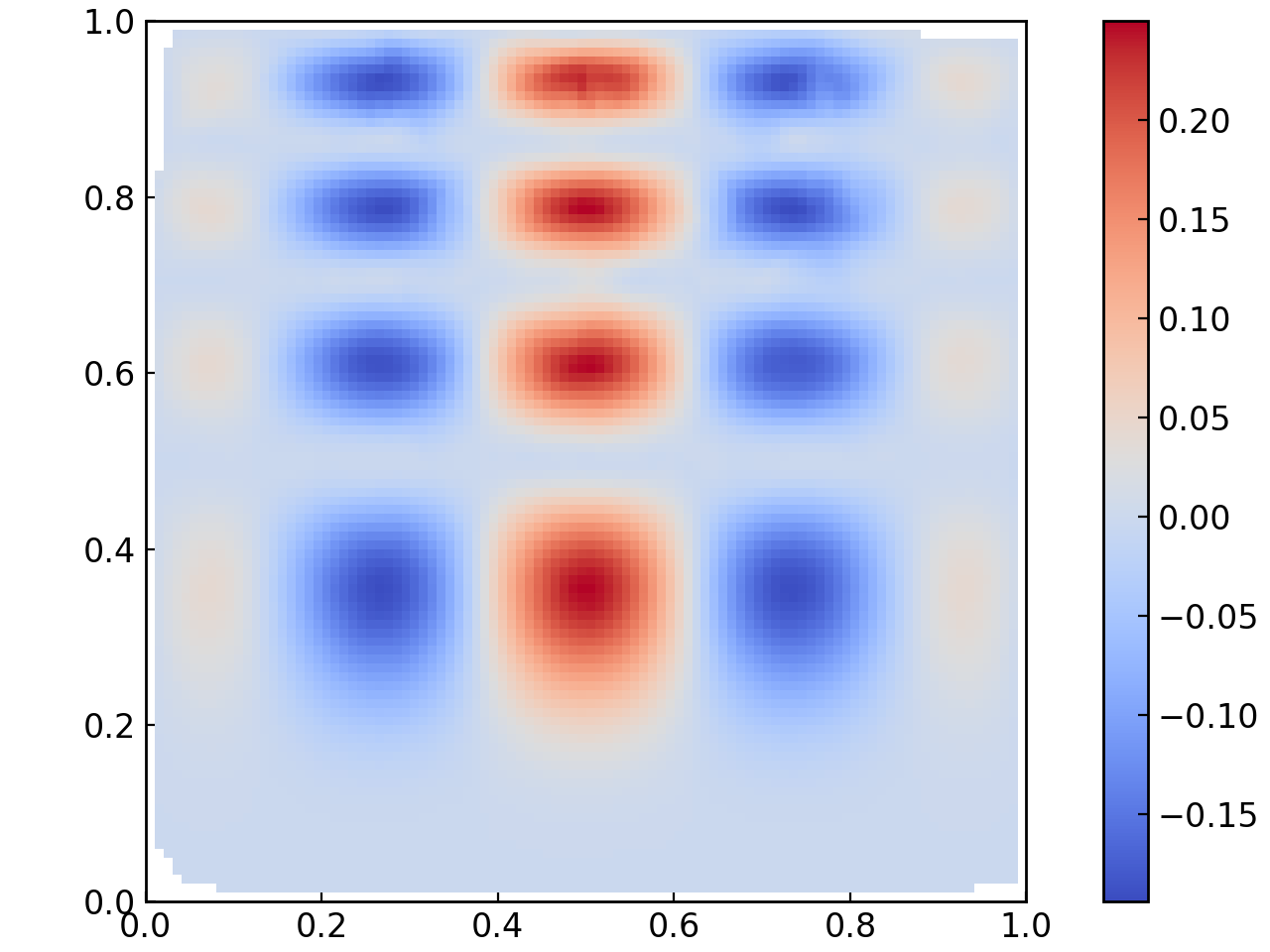

The from_points() method used below will interpolate the data on a grid and create a Heatmap from this interpolated data:

def func(x, y):
    return x * (1 - x) * np.cos(4 * np.pi * x) * np.sin(4 * np.pi * y**2) ** 2

rng = np.random.default_rng(seed=0)
points = rng.random((1000, 2))
values = func(points[:, 0], points[:, 1])

fig = gl.Figure()
hm = gl.Heatmap.from_points(
    points,
    values,
    (0, 1),
    (0, 1),
    grid_interpolation="cubic",
    number_of_points=(100, 100),
    origin_position="lower",
    color_map="coolwarm",
)
fig.add_elements(hm)
fig.show()

(png, hires.png, pdf)

../_images/2D_plotting-4.png

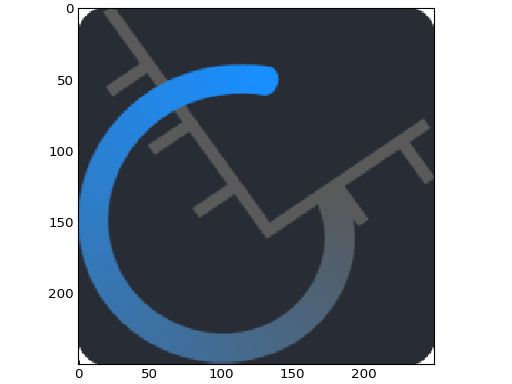

To display an image instead, simply create a Heatmap with the path to an image as a string instead of actual data:

map = gl.Heatmap("../_static/icons/GraphingLib-favicon_250x250.png")
figure = gl.Figure()
figure.add_elements(map)
figure.show()

(png, hires.png, pdf)

../_images/2D_plotting-5.png

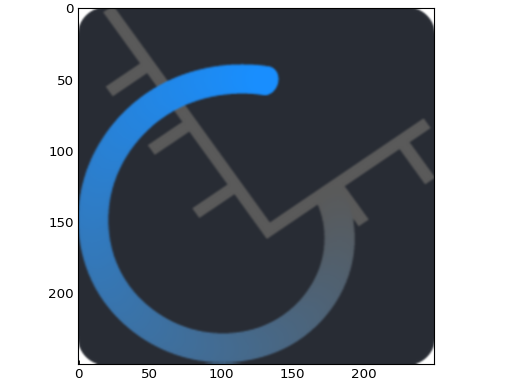

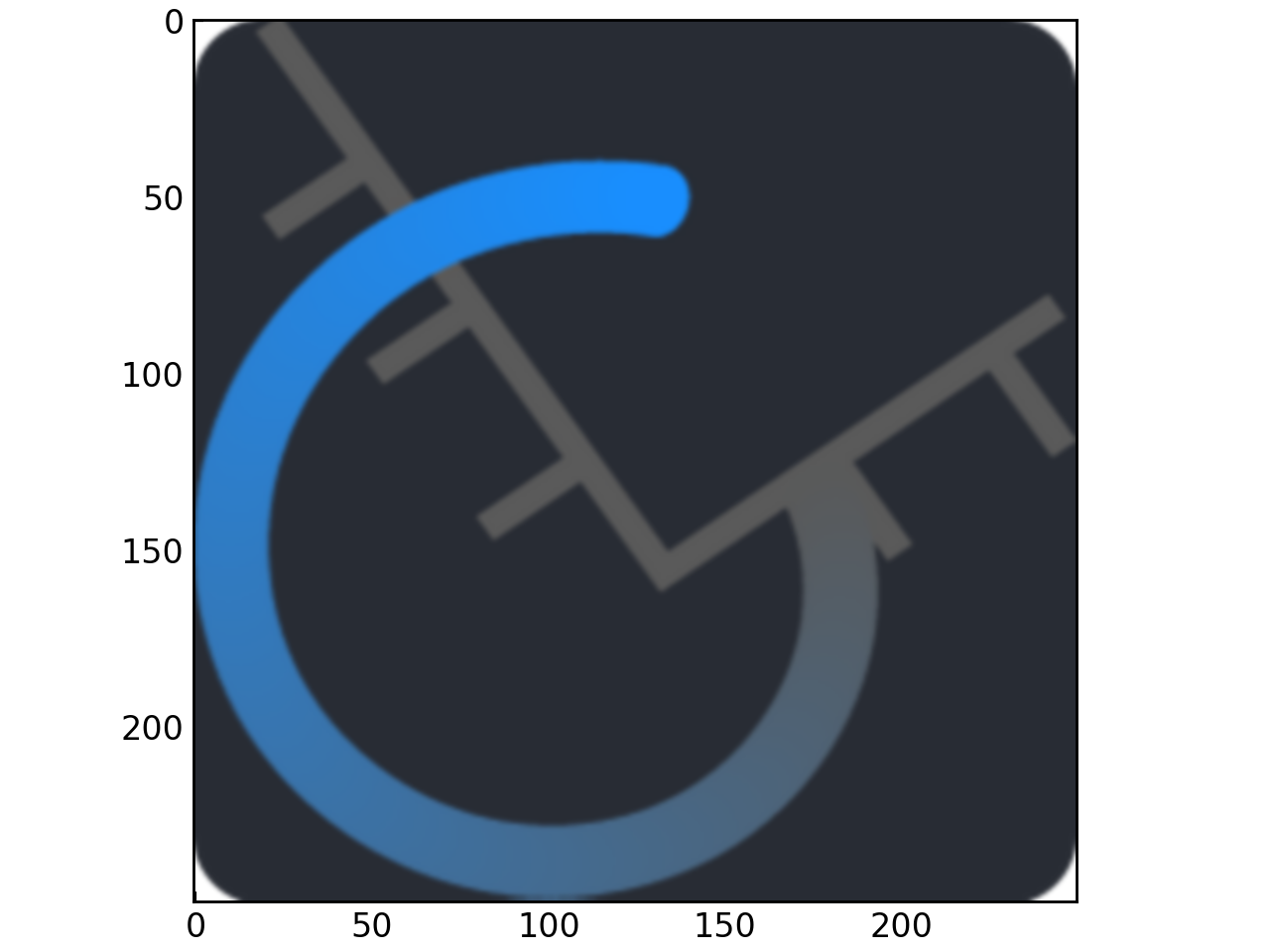

There are again many parameters to control for the Heatmap objects but an important one to mention here is the interpolation parameter. This allows you to choose an interpolation method to apply to the Heatmap data (image or not). The possible values for this parameter are the interpolation methods for imshow from Matplotlib. Using the bicubic interpolation on the GraphingLib logo before:

map = gl.Heatmap("../_static/icons/GraphingLib-favicon_250x250.png", interpolation="bicubic")
figure = gl.Figure()
figure.add_elements(map)
figure.show()

(png, hires.png, pdf)

../_images/2D_plotting-6.png

Note

By default, there is no interpolation applied to the data.

The Contour Object#

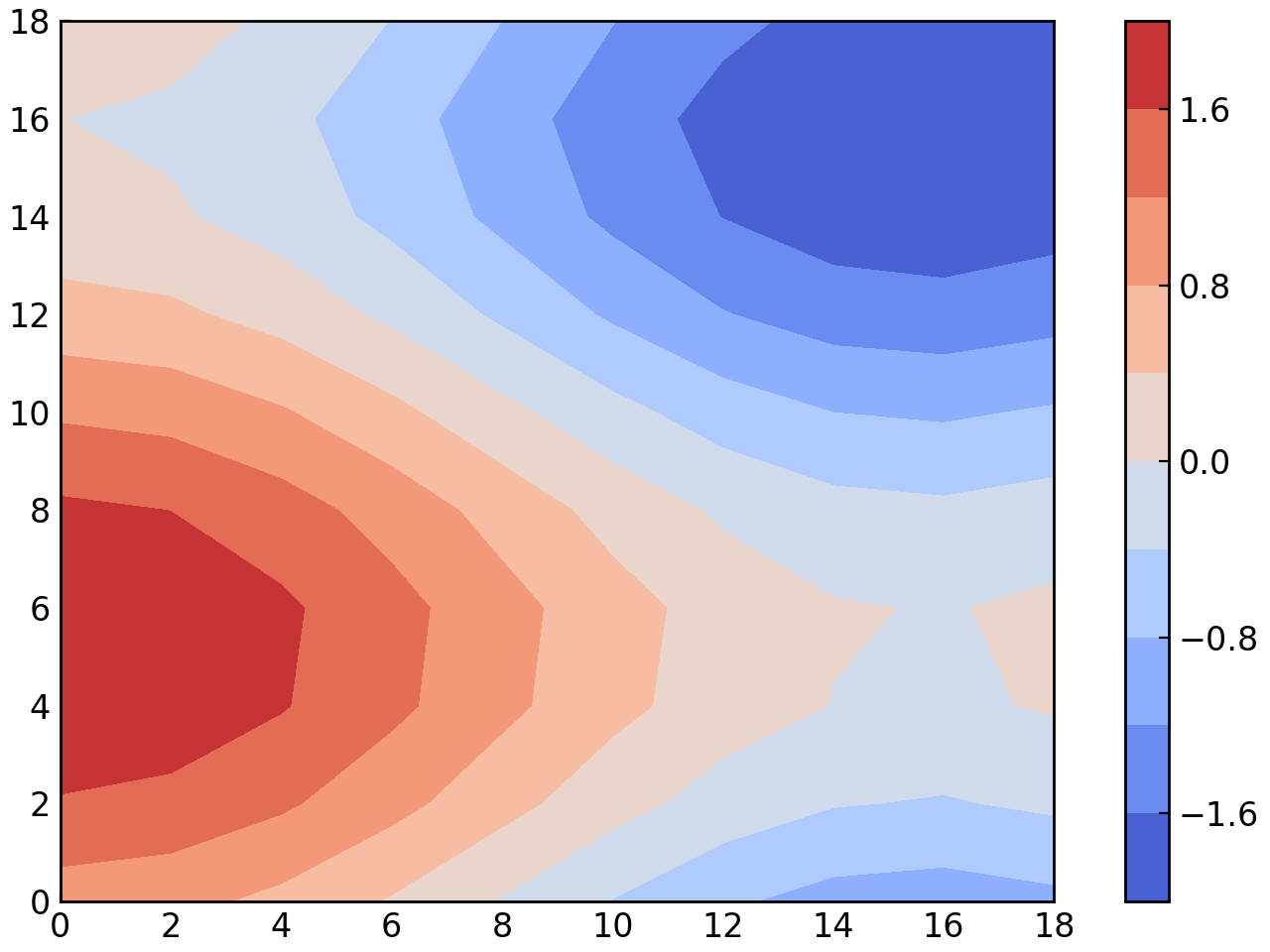

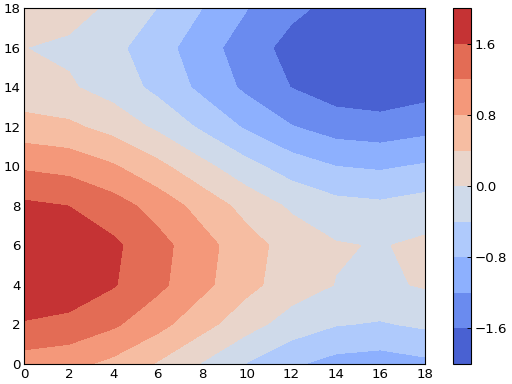

The Contour class allows you to display a contour plot of 2-dimensional data. Here is an example of how to create a Contour object from the same data used in the Heatmap examples:

x_grid, y_grid = np.meshgrid(np.arange(0, 20, 2), np.arange(0, 20, 2))
data = np.cos(x_grid * 0.2) + np.sin(y_grid * 0.3)

contour = gl.Contour(x_grid, y_grid, data)
figure = gl.Figure()
figure.add_elements(contour)
figure.show()

(png, hires.png, pdf)

../_images/2D_plotting-7.png

The contour class also has a from_function() method:

x_grid, y_grid = np.meshgrid(np.arange(0, 20, 2), np.arange(0, 20, 2))
contour = gl.Contour.from_function(
    lambda x, y: np.cos(x * 0.2) + np.sin(y * 0.3), x_grid, y_grid
)

The VectorField Object#

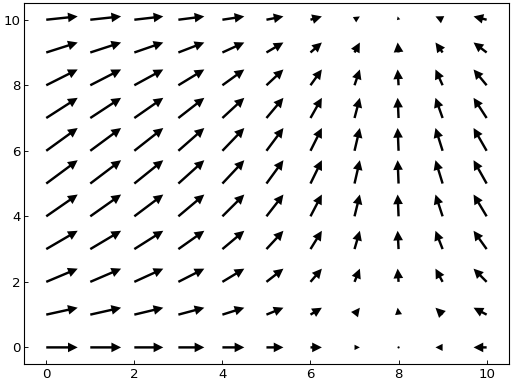

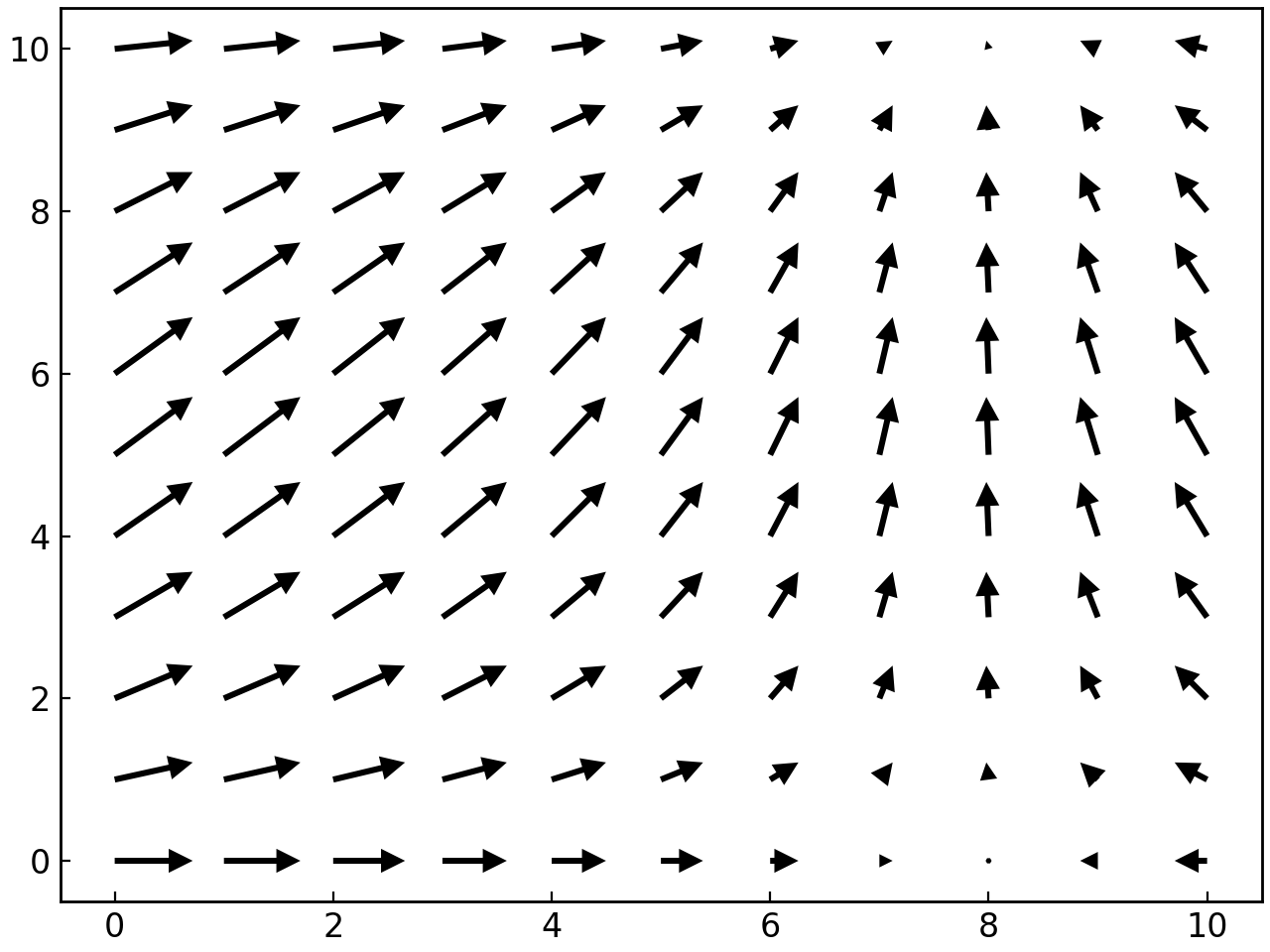

As its name suggests, the VectorField class allows you to plot a 2-dimensional vector field. Here is an example of its usage:

x_grid, y_grid = np.meshgrid(np.arange(0, 11, 1), np.arange(0, 11, 1))
u, v = (np.cos(x_grid * 0.2), np.sin(y_grid * 0.3))

vector = gl.VectorField(x_grid, y_grid, u, v)
figure = gl.Figure()
figure.add_elements(vector)
figure.show()

(png, hires.png, pdf)

../_images/2D_plotting-9.png

As both classes discussed prior, the VectorField object has a from_function() method:

vector = gl.VectorField.from_function(
    lambda x, y: (np.cos(x * 0.2), np.sin(y * 0.3)), (0, 11), (0, 11)
)

The Stream Object#

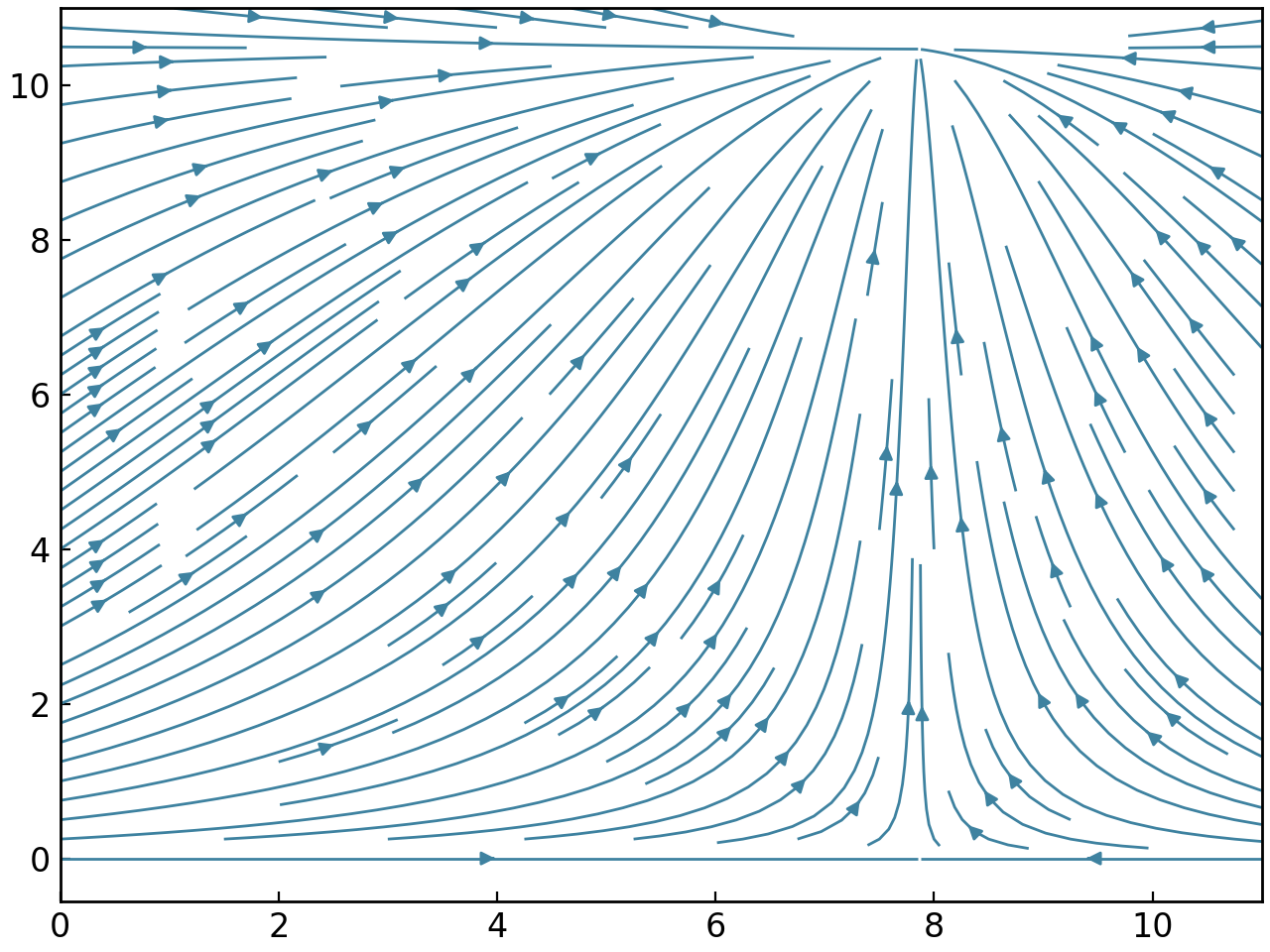

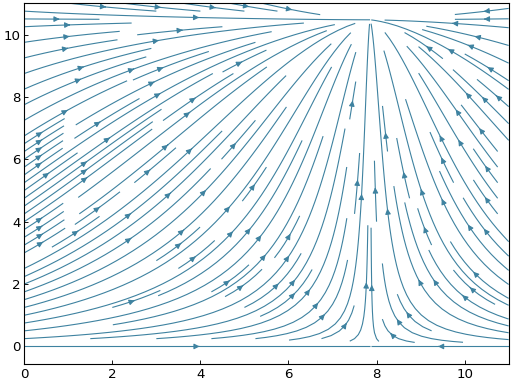

The Stream class allows you to create stream plots in GraphingLib. Here is an example of its usage:

x_grid, y_grid = np.meshgrid(np.linspace(0, 11, 30), np.linspace(0, 11, 30))
u, v = (np.cos(x_grid * 0.2), np.sin(y_grid * 0.3))

stream = gl.Stream(x_grid, y_grid, u, v, density=1.5)
figure = gl.Figure()
figure.add_elements(stream)
figure.show()

(png, hires.png, pdf)

../_images/2D_plotting-11.png

The density parameter used in the example above is the density of stream lines to display. The default density is set to 1, which means that the plotting domain is divided into a 30x30 grid in which each square can only be traversed by one stream line. Note that it is also possible to create a Stream from a function using its from_function() method:

stream = gl.Stream.from_function(
    lambda x, y: (np.cos(x * 0.2), np.sin(y * 0.3)), (0, 11), (0, 11), density=1.5
)
