Miscellaneous Objects#

The Point Object#

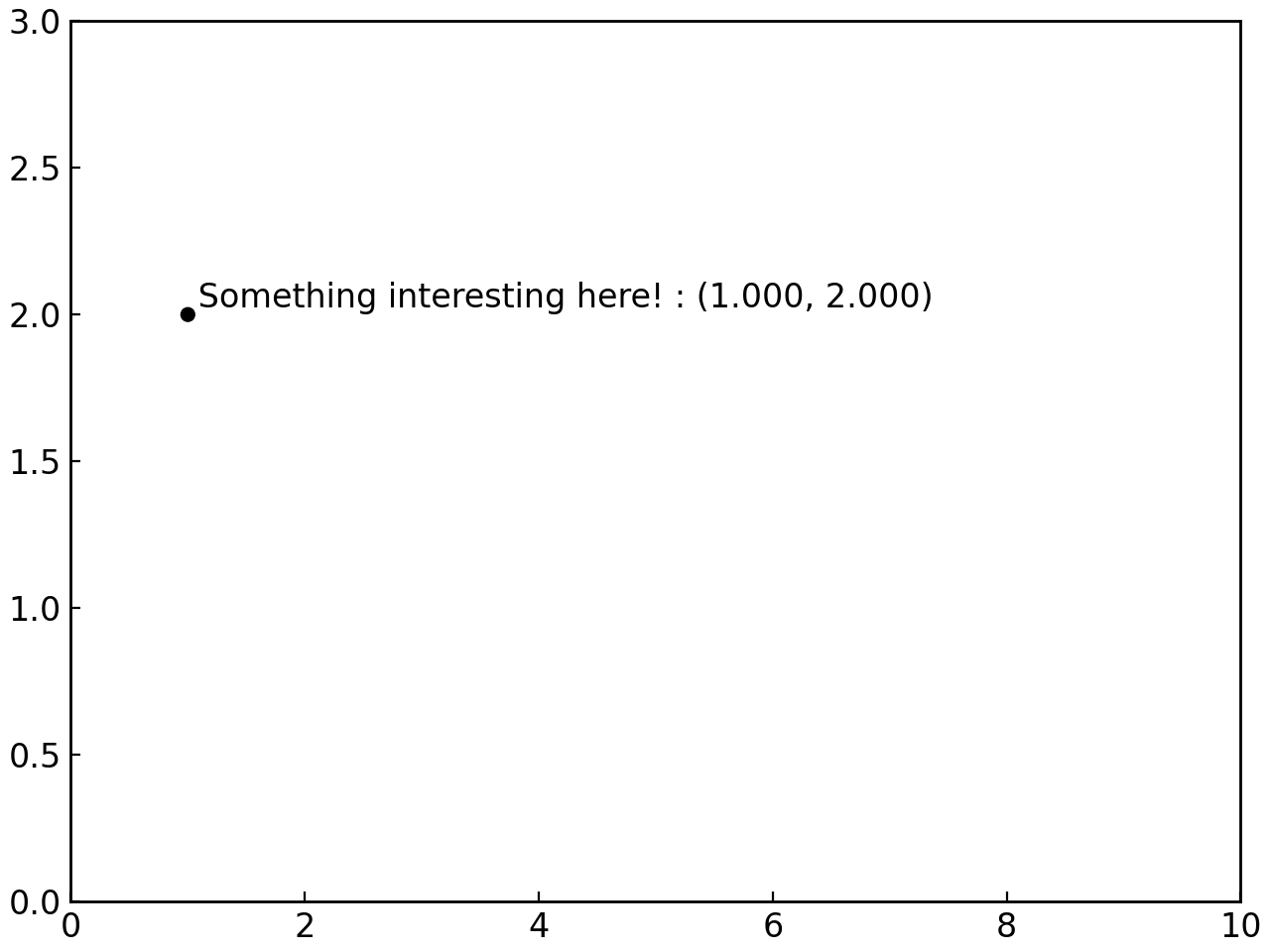

The Point object is useful for highlighting a specific point on a graph. You can attach a label to it, or its coordinates, or both. Here is how to create a labeled Point object and add its coordinates:

point = gl.Point(1, 2, label="Something interesting here!")
point.add_coordinates()

fig = gl.Figure(x_lim=(0, 10), y_lim=(0, 3))
fig.add_elements(point)
fig.show()

(png, hires.png, pdf)

../_images/graph_elements-1.png

There are many more parameters to be customized for the Point object, but those are all included in the figure style files and can therefore be left out most of the time. For details on the other parameters, visit the Reference section on Point objects.

See also

The Point object is returned by methods of the Curve objects like get_point_at_x(), get_points_at_y() and intersection().

The Hlines and Vlines Object#

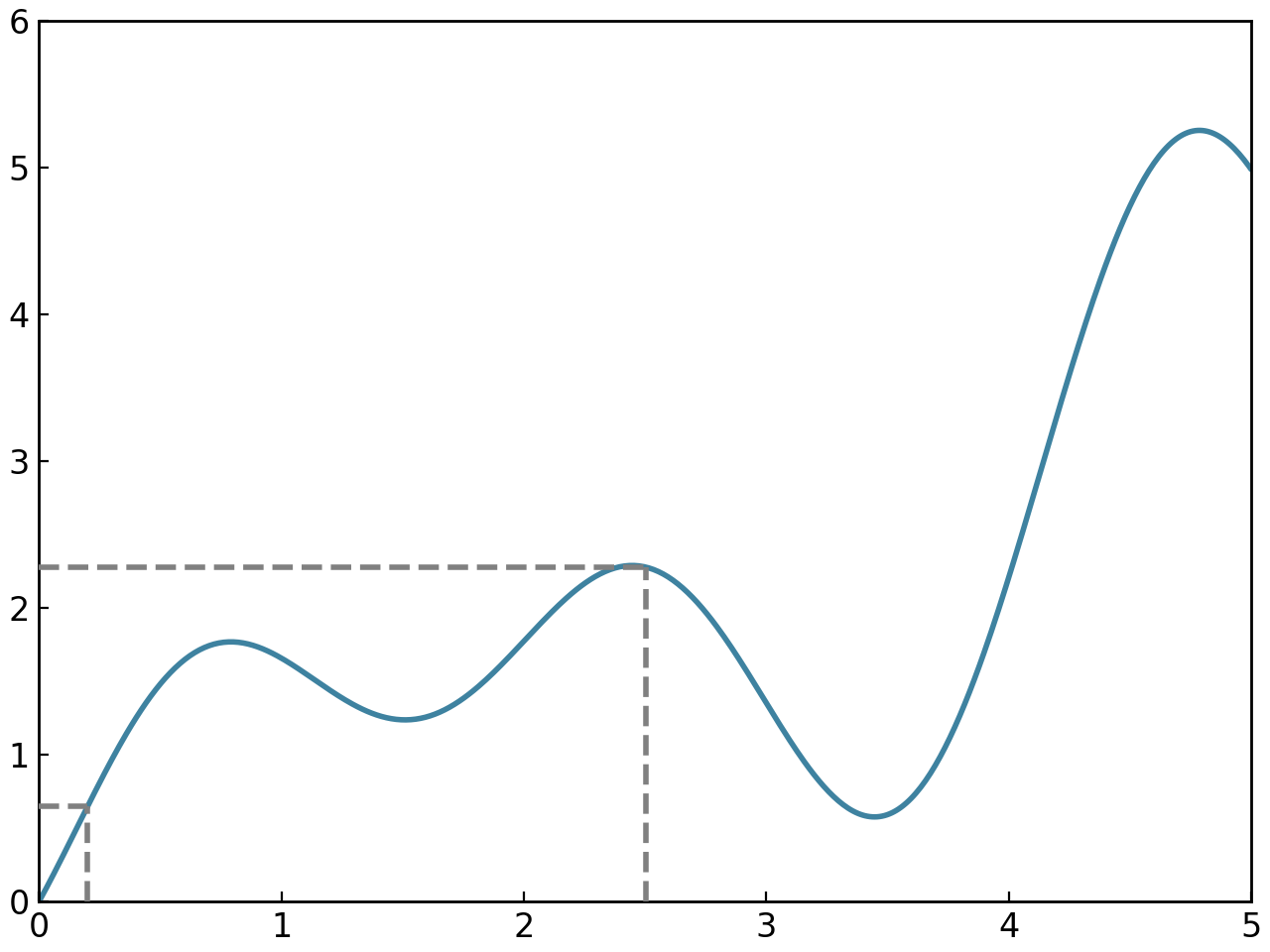

The Hlines and Vlines objects serve a similar purpose to the Point object; they are markers for specific values in x or y. Here is an example which shows you how to use them

curve = gl.Curve.from_function(
    lambda x: 0.1 * x**2 + np.sin(3 * x) - np.cos(2 * x) + 1, 0, 5
)
hlines = gl.Hlines(
    y=[curve.y_data[20], curve.y_data[250]],
    x_min=[0, 0],
    x_max=[curve.x_data[20], curve.x_data[250]],
    line_styles="--",
    colors="gray",
)
vlines = gl.Vlines(
    x=[curve.x_data[20], curve.x_data[250]],
    y_min=[0, 0],
    y_max=[curve.y_data[20], curve.y_data[250]],
    line_styles="--",
    colors="gray",
)

figure = gl.Figure(x_lim=(0, 5), y_lim=(0, 6))
figure.add_elements(curve, hlines, vlines)
figure.show()

(png, hires.png, pdf)

../_images/graph_elements-2.png

For both Hlines and Vlines, it is possible to pass lists of colors and line_styles instead of applying the same for all lines as is the case in the example above.

The Text Object#

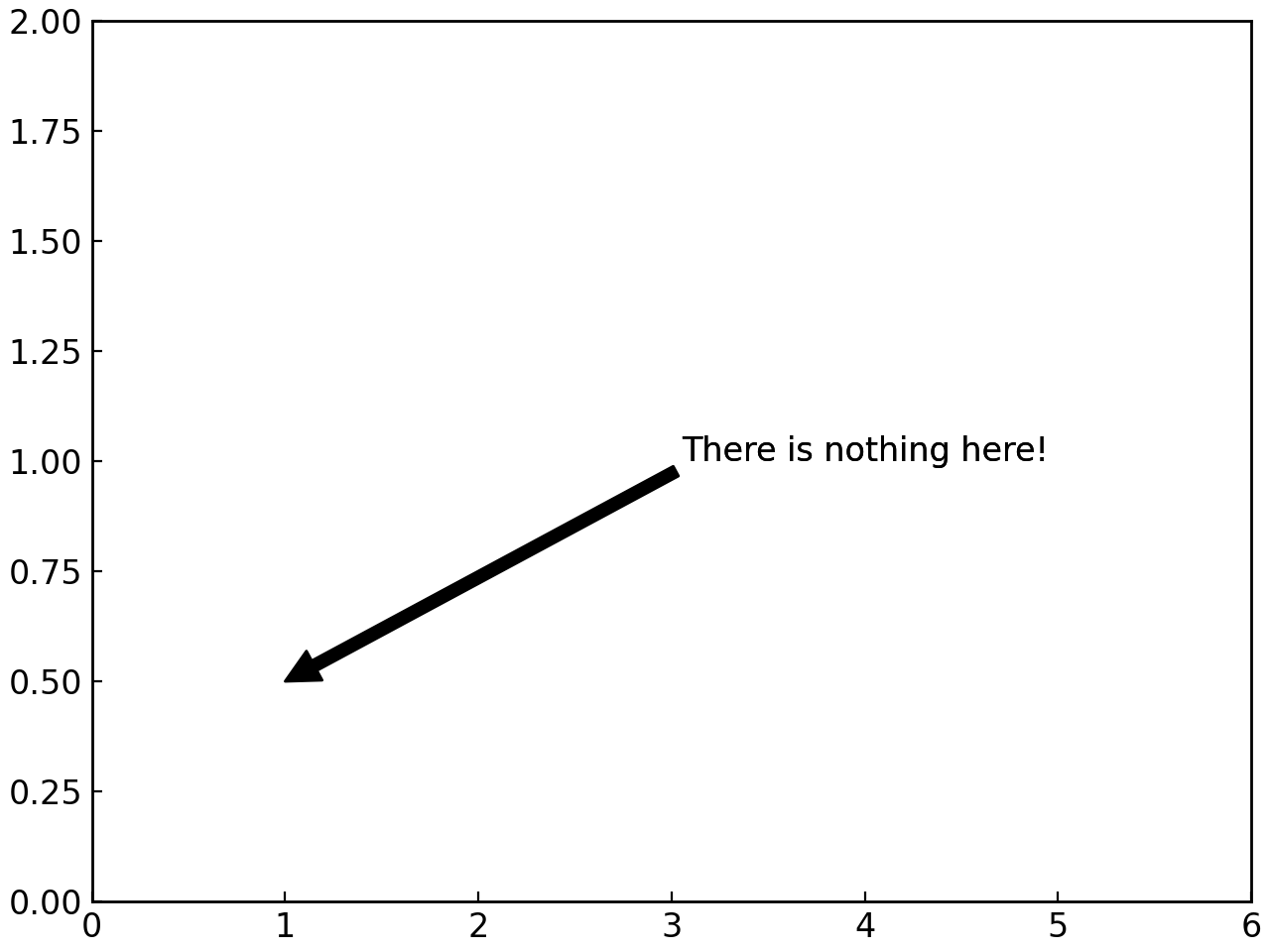

The Text object is used to display text on a figure. It also allows you to point from the text to a specified point using an arrow. Here is how to create a text object and attach an arrow to it:

text = gl.Text(4, 1, "There is nothing here!")
text.add_arrow((1, 0.5))

fig = gl.Figure(x_lim=(0, 6), y_lim=(0, 2))
fig.add_elements(text)
fig.show()

(png, hires.png, pdf)

../_images/graph_elements-3.png

There are many more parameters to be customized for the Text object and its arrow, but those are all included in the figure style files and can therefore be left out most of the time. For details on the other parameters, visit the Reference section on Text objects.

The Table Object#

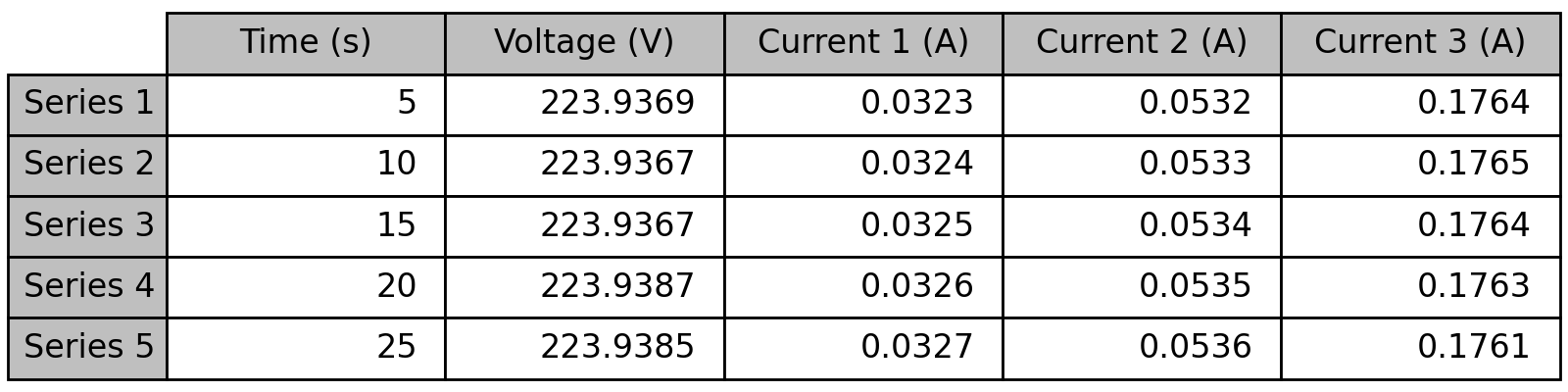

The Table object is used to display a table of data or any relevant information in a Figure or Multifigure. Here is how to display a simple table of data

data = [
    [5, 223.9369, 0.0323, 0.0532, 0.1764],
    [10, 223.9367, 0.0324, 0.0533, 0.1765],
    [15, 223.9367, 0.0325, 0.0534, 0.1764],
    [20, 223.9387, 0.0326, 0.0535, 0.1763],
    [25, 223.9385, 0.0327, 0.0536, 0.1761],
]
columns = ["Time (s)", "Voltage (V)", "Current 1 (A)", "Current 2 (A)", "Current 3 (A)"]
rows = ["Series 1", "Series 2", "Series 3", "Series 4", "Series 5"]
colors = ["#bfbfbf"] * 5

table = gl.Table(
    cell_text=data,
    col_labels=columns,
    row_labels=rows,
    row_colors=colors,
    col_colors=colors,
    location="center",
)

figure = gl.Figure(size=(8, 2), remove_axes=True)
figure.add_elements(table)
figure.show()

(png, hires.png, pdf)

../_images/graph_elements-4.png

The Table object has parameters to set the text alignment (cell_align, row_align and col_align), parameters to set the column and row labels’ background colors (col_colors and row_colors) and a parameter to set the location of the table with respect to the axes in which it is displayed. It also has a parameter to set the scaling factors of the table in the horizontal and vertical directions. This scaling can be used to leave more verttical or horizontal space for the text in the table’s cells. It is set to (1, 1.5) by default to make the text easier to read than normal Matplotlib tables.
